Board-level 24V-60VDC GaN servo drives, 48V driver boards, driver-encoder stacks, and EtherCAT / CAN FD options for compact battery-powered robotics.
Inquiry Email
Include voltage, current, motor, encoder, protocol, board envelope, and quantity stage.
24-60VDC
Battery bus
EtherCAT / CAN FD
Motion network
Board-level
GaN power stage
GaN power stage options for 48V robot joints, frameless PMSM motors, and compact actuator modules.
PCB outline, stack height, connector direction, encoder interface, and cooling path are reviewed before samples.
EtherCAT, CAN FD, encoder, firmware parameter, and acceptance test questions are handled in the RFQ thread.
Robotics buyers need to review thermal behavior, form-factor limits, protocol fit, and validation records before freezing a compact servo drive into a joint module.

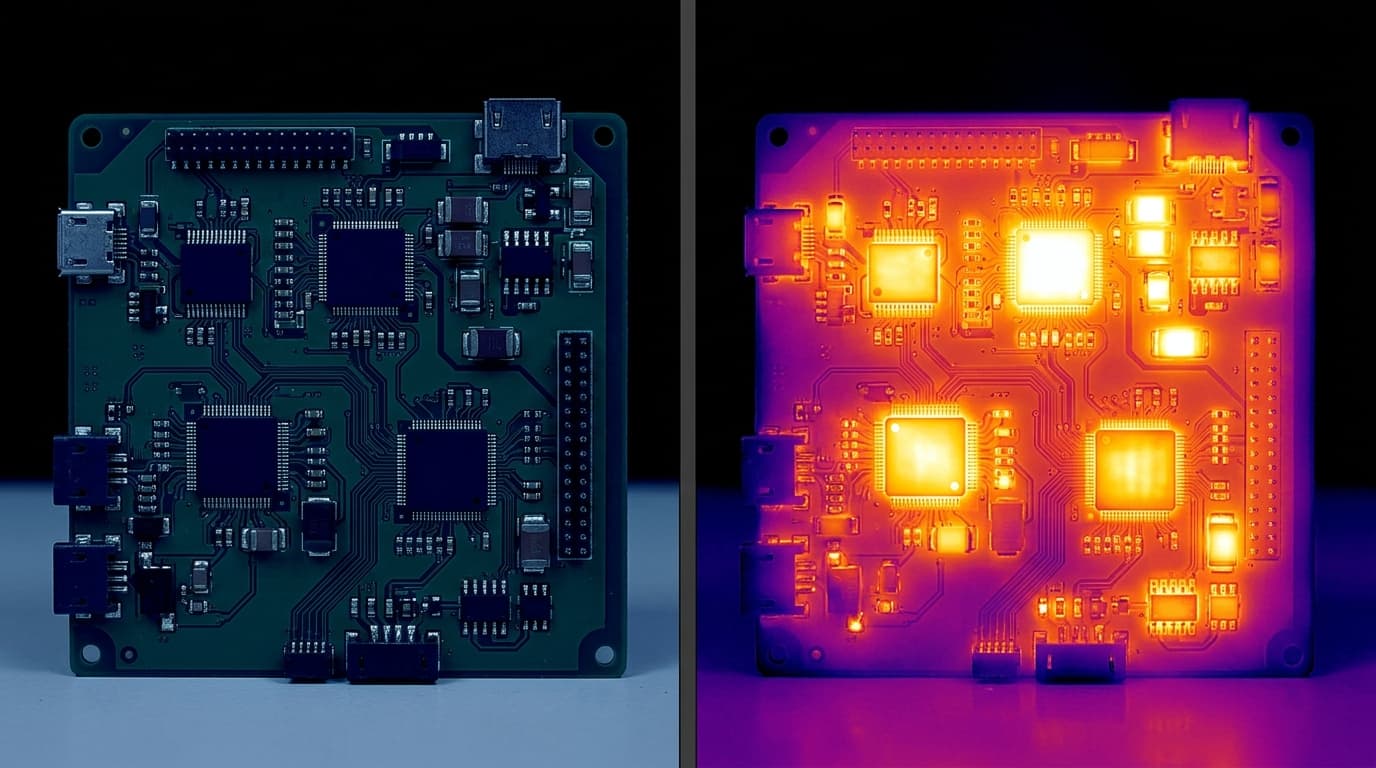

GaN switching can reduce power-stage losses and thermal mass in dense 24V-60VDC robot joints. During RFQ, share the real current profile, ambient temperature, cooling contact, and housing material so the sample plan can include relevant thermal checks.
Thermal Review
Duty Cycle Needed
Center Bore: project-specific
OD: matched to motor frame
Stack height by revision
Board diameter, center bore, connector direction, stack height, encoder clearance, and thermal contact area determine whether a servo drive can fit the joint housing without later mechanical redesign.
Controls teams can discuss protocol mode, cycle time, PDO mapping, diagnostics, commissioning files, and master-controller assumptions before ordering samples.
Request the specific datasheet, envelope drawing, connector pinout, STEP model, ESI file, or parameter baseline needed for your evaluation stage.
Start from the operating window your robot actually needs: voltage, current, board envelope, encoder feedback, protocol, and cooling path.

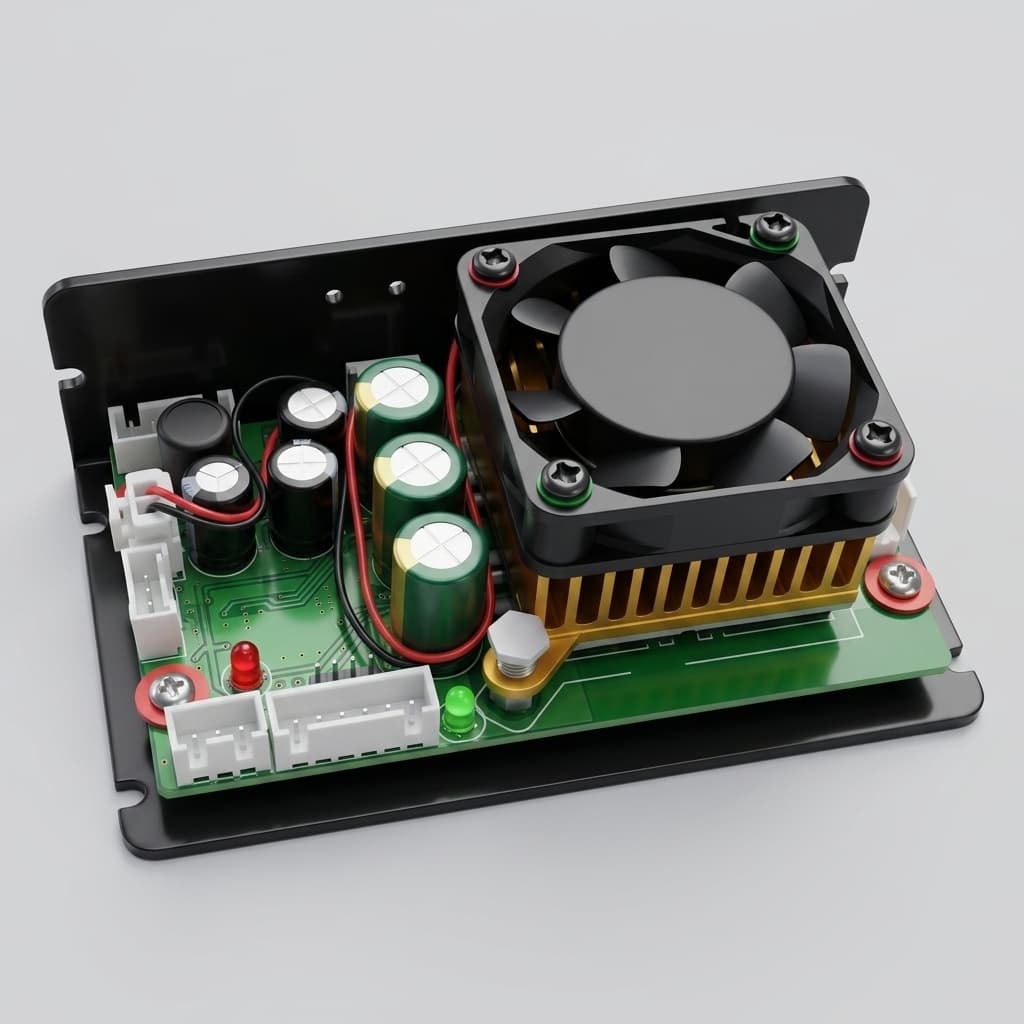

High power density 24V-60VDC servo drives using Gallium Nitride (GaN) switching for compact robot joints where thermal behavior must be validated.
Buyer checks
Bare-board 48V servo drivers optimized for direct integration into robotic joint modules and custom automation chassis.
Buyer checks

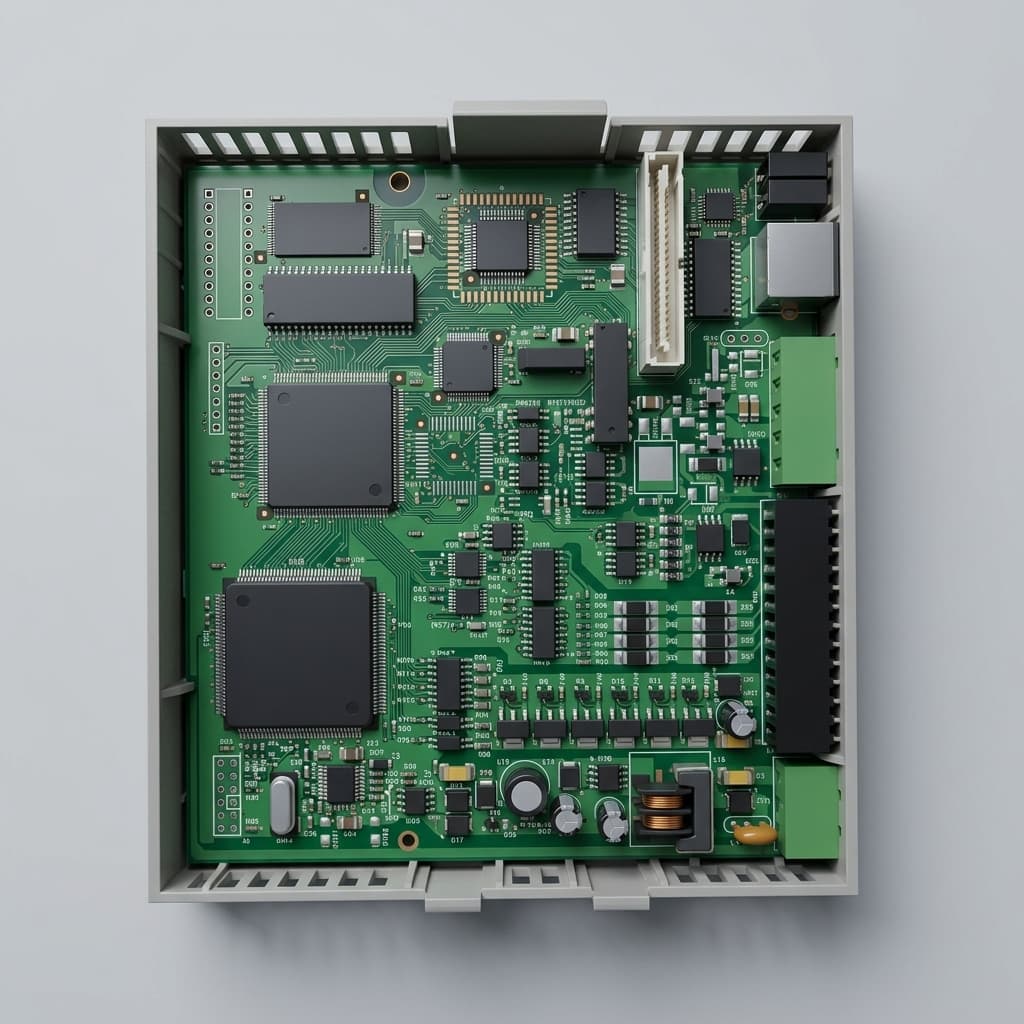

A 2-in-1 PCBA combining a high-performance servo drive with a high-resolution absolute magnetic encoder to save axial space and wiring.
Buyer checks
Disk-shaped (circular) servo drives specifically designed to mount flush against frameless torque motors inside robotic joints.
Buyer checks

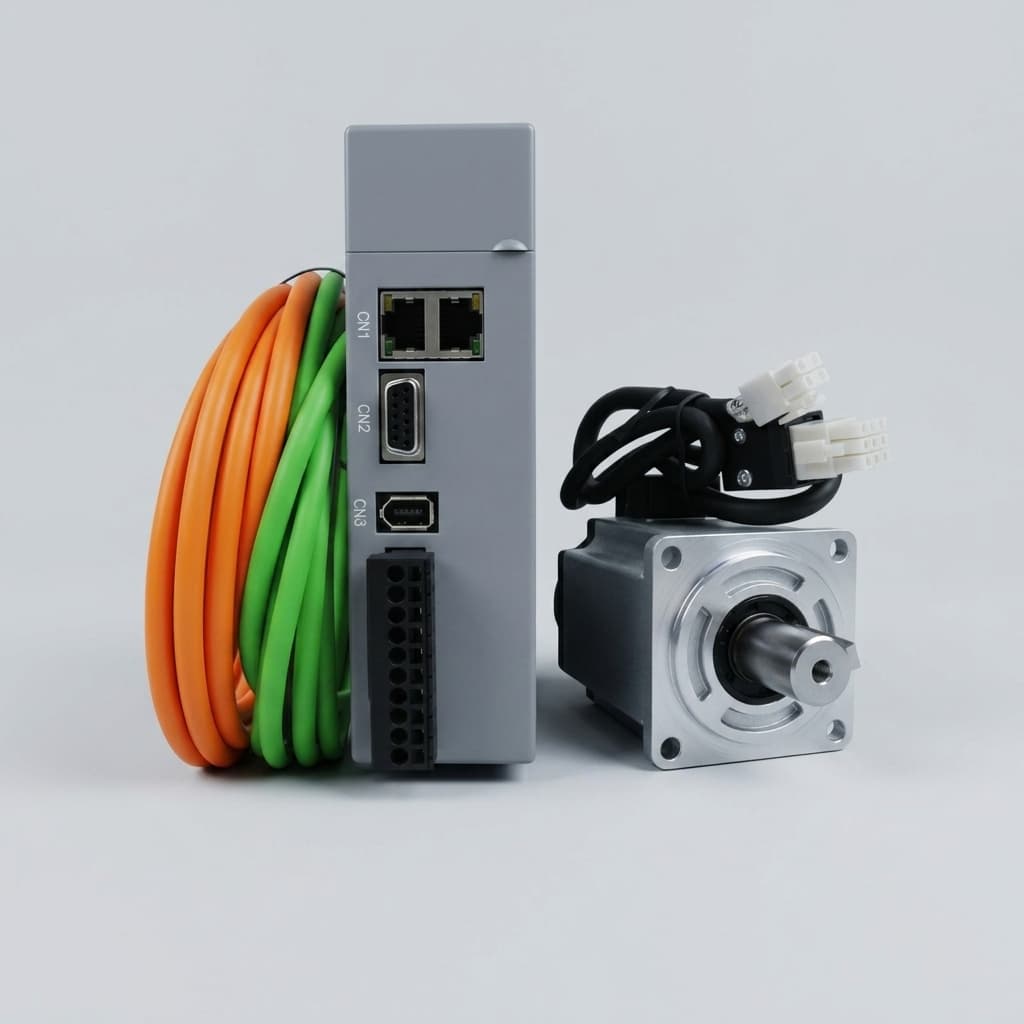

EtherCAT servo drives for deterministic, multi-axis synchronous control in industrial and robotic networks, with CiA 402 behavior confirmed per firmware package.
Buyer checks
High-bandwidth CAN FD servo drives offering a robust, cost-effective alternative to EtherCAT with significantly higher payloads than standard CANbus.
Buyer checks
Engineering Support
Robotics buyers can review the questions that matter before selecting a low-voltage servo drive supplier: electrical fit, encoder support, firmware maturity, test evidence, sample path, and delivery risk.
We review outer diameter, inner bore, stack height, connector direction, mounting holes, and cooling contact before recommending a drive platform.
PMSM or BLDC winding data, pole pairs, inductance, KV, encoder protocol, and magnet placement are checked before sample firmware is frozen.
Controls teams can discuss CiA 402 modes, PDO mapping, update rate, diagnostics, ESI files, and CAN FD topology during RFQ.
Samples, validation thresholds, pilot lots, firmware versions, inspection records, and shipment milestones are planned as one engineering path.
Customization Range
Buyers do not only ask whether a drive is OEM-capable. They need to know which parts of the electrical, mechanical, feedback, firmware, and delivery stack can move without restarting the program from zero.
24V / 36V / 48V / 60VDC bus, continuous current, peak current, peak duration, regeneration margin, and protection thresholds.
Circular or rectangular PCB outline, center bore, stack height, mounting holes, connector side, cable exit, and thermal contact area.
Incremental, Hall, magnetic, optical, inductive, BiSS-C, SPI, ABI, UVW, dual-loop feedback, and FOC parameter matching.
EtherCAT, CAN FD, CANopen, RS485, UART, step/dir, CiA 402 modes, diagnostics, bootloader, and commissioning file requirements.

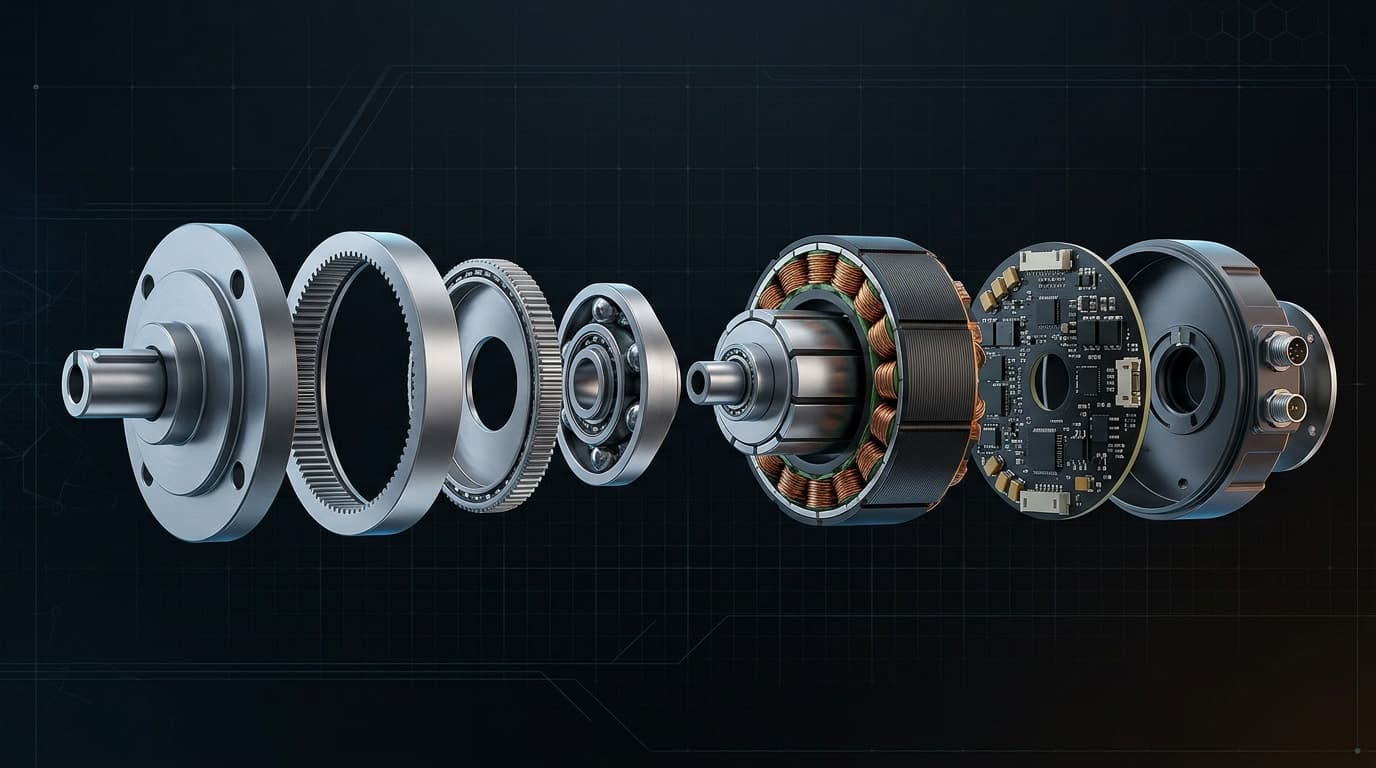

Drive board, frameless motor, encoder, reducer, brake, harness, thermal pad, housing, and assembly sequence can be reviewed together.
Conformal coating, potting direction, sealed-joint cooling, vibration exposure, ambient temperature, and export packaging needs.
Sample & Delivery Path
Clear stages help robotics teams avoid wasting weeks on a drive that fits electrically but fails mechanically, thermally, or commercially.
Initial RFQ Triage
Voltage, current, motor, encoder, protocol, envelope, cooling, quantity, and schedule are checked first.
Sample or Pilot Build
Sample units, firmware parameters, acceptance criteria, and joint-housing tests are aligned before pilot.
Batch Release Controls
Pilot approval, inspection records, firmware revision lock, and export delivery planning prepare repeat orders.
This quick matrix helps cross-functional teams compare major options before opening a detailed RFQ thread.
| Family | Best Fit | Key Metric | Why It Matters |
|---|---|---|---|
| GaN Low-Voltage Servo Drives | Robotics OEM engineers seeking maximum power density and thermal headroom. | Efficiency: Project-specific test condition required | Reduces heat dissipation in sealed robot joints when the electrical and cooling boundary is validated. |
| 48V Servo Driver Board | Hardware integration engineers designing custom enclosures. | Voltage Range: 18V - 60V DC | Safely handles regeneration spikes from 48V battery systems. |
| Driver-Encoder Integrated Servo Board | Joint module designers aiming to minimize axial length and harness complexity. | Axial Thickness: < 15mm | Directly dictates the total length of the robotic joint module. |
| Robot Joint Servo Drive | Robotics mechanical engineers optimizing joint mass and space. | Form Factor: OD: 40mm - 90mm | Must match the selected frameless motor stator diameter, mounting pattern, and cable path. |
| EtherCAT 48V Servo Drive | Control systems engineers building real-time deterministic networks. | Min Cycle Time: 125 µs - 250 µs | Essential for high-speed impedance control in robotics. |
| CAN FD Servo Drive | Embedded engineers upgrading from standard CAN 2.0A/B. | Data Rate: 2 Mbps - 5 Mbps | Reduces bus latency, allowing more joints to be controlled on a single string. |

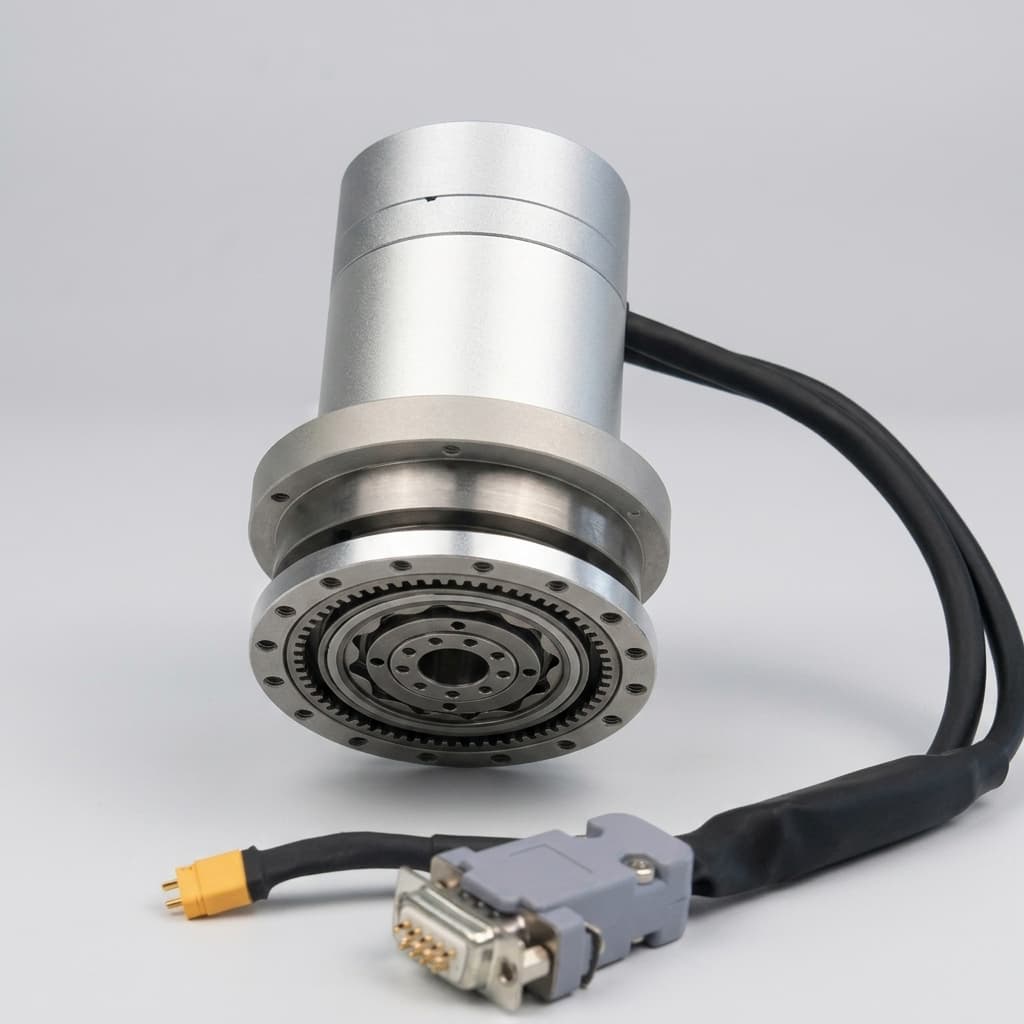

 Hollow Shaft Integrated Joints | Robotics startups and OEMs seeking integrated joint modules with defined validation and fit checks. | Torque Density: High (varies by gear ratio) | Determines the payload capacity of the robot arm relative to its weight. |

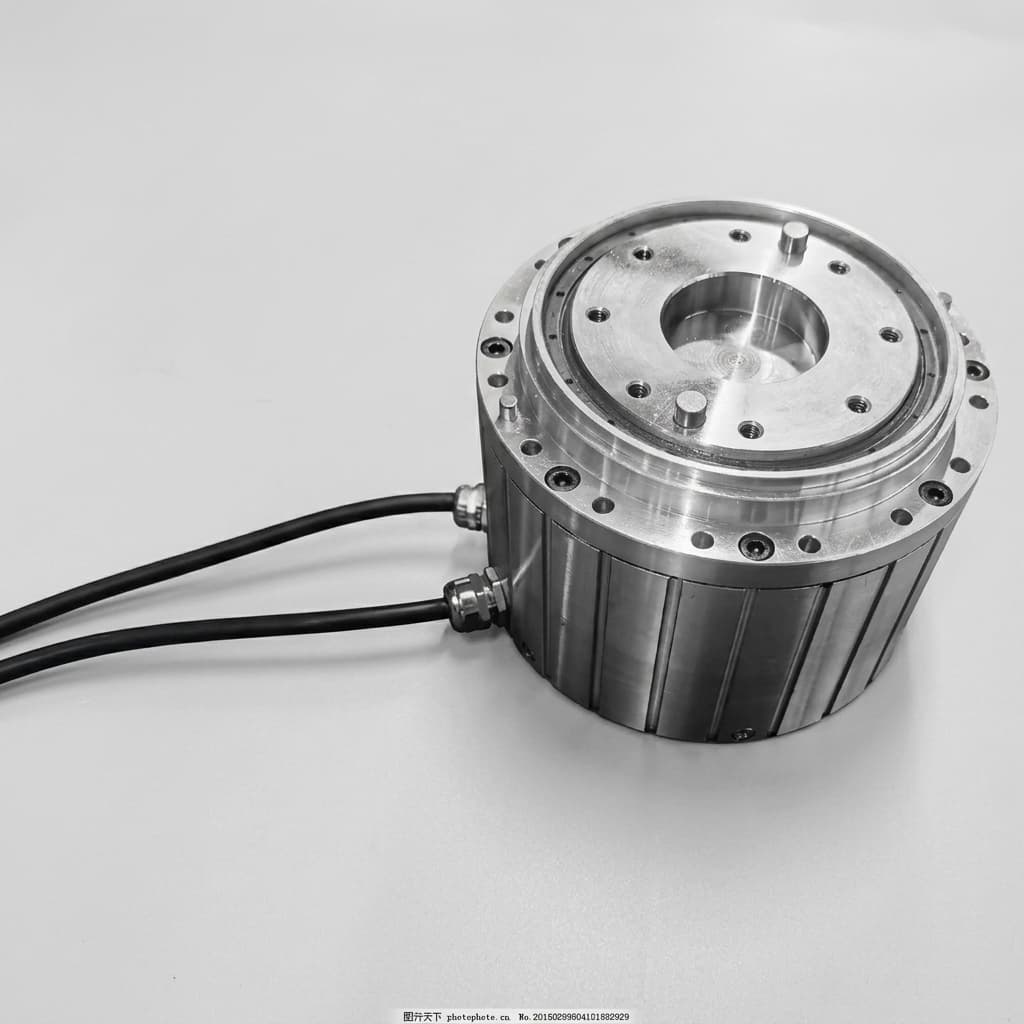

Application fit changes the real acceptance test. A humanoid hip, cobot elbow, AMR steering axis, and wearable actuator stress the same 48V servo drive in different ways.
Friction compensation / Torque ripple minimization
Check application fit →
Battery voltage fluctuation / Braking resistor integration
Check application fit →

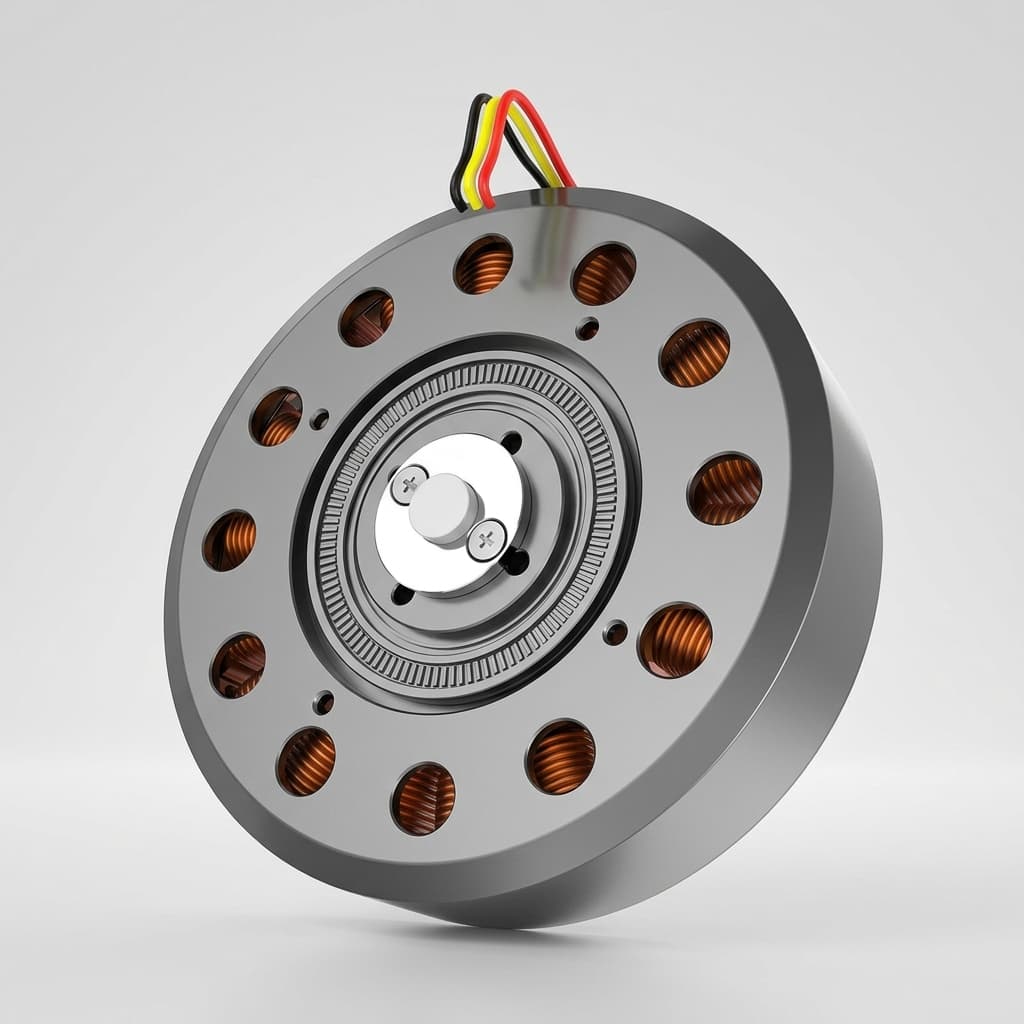

Thermal management near human skin / Standby power draw
Check application fit →Practical buyer-side checklists, decision frameworks, and technical insights from our OEM engineering team.

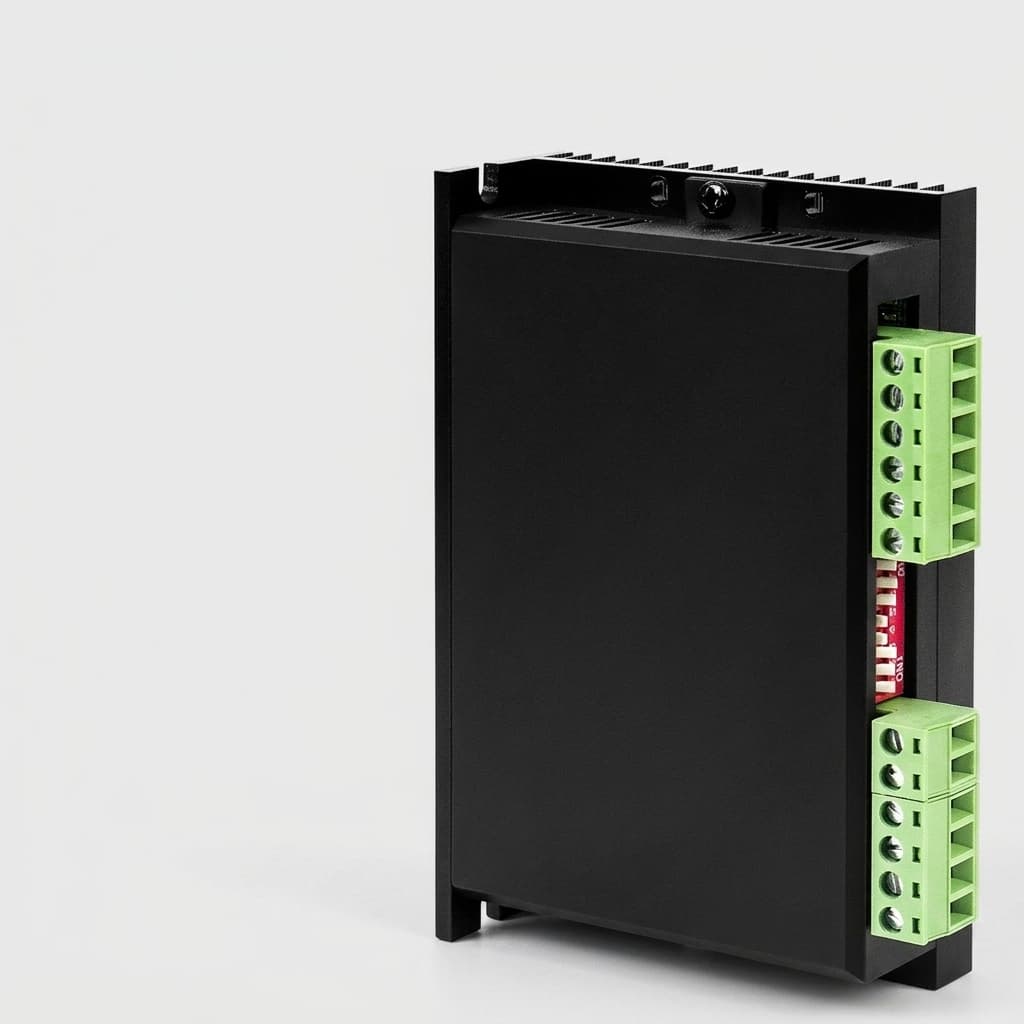

Global sourcing guide for decentralized IP67 GaN servo drives, covering wiring cost models, thermal derating limits, RFQ evidence, and OEM sourcing CTAs.
Specify 48V GaN servo drives for low-inductance robotics motors: current ripple limits, choke elimination, EMI risks, RFQ checks, and sourcing trade-offs.
Evaluate SIL3 STO in micro GaN servo drives globally: compare isolation, CMTI, certification evidence, supplier risks, and RFQ checks. Request review.
FAQ
Quality & Delivery Control
The goal is to catch thermal, firmware, encoder, protocol, and supply-chain risks before a compact servo drive becomes locked inside a robot joint design.
| Checkpoint | Typical Evidence or Decision Output |
|---|---|
| Design Input Review | Voltage/current margins, motor data, encoder compatibility, protocol assumptions, and thermal boundary notes. |
| Prototype Validation | Current-loop checks, thermal records, fault behavior, firmware revision notes, and sample acceptance criteria. |
| Pilot Lot Control | Incoming material checks, inspection plan, AVL discussion, packaging method, and traceability records. |
| Batch Release | End-of-line test expectations, locked firmware version, shipment milestones, and change-control communication. |
Sample to Batch
Teams usually need a fast engineering answer before they need a polished quote. The practical path is fit check, sample, pilot, and repeatable batch delivery.
Confirm fit/no-fit, missing data, closest platform, and whether a standard sample or custom review is needed.
Ship available board or kit, align firmware baseline, define bench tests, and review joint-housing integration risk.
Freeze acceptance criteria, verify inspection records, check packaging, and plan export delivery timing.
Control revision changes, firmware version, lot traceability, shipment milestones, and repeat-order forecast.
RFQ Parameters
More complete inputs reduce quotation loops and help the engineering team decide whether to recommend a standard drive, a modified board, or a broader joint-module BOM.
Share voltage, current, motor, encoder, protocol, board envelope, cooling path, quantity stage, target country, and schedule. We will respond with a practical sample or sourcing path.
